Project
|
Specifications
|
|
Brand
|
Porcheson
|
|
Host model
|

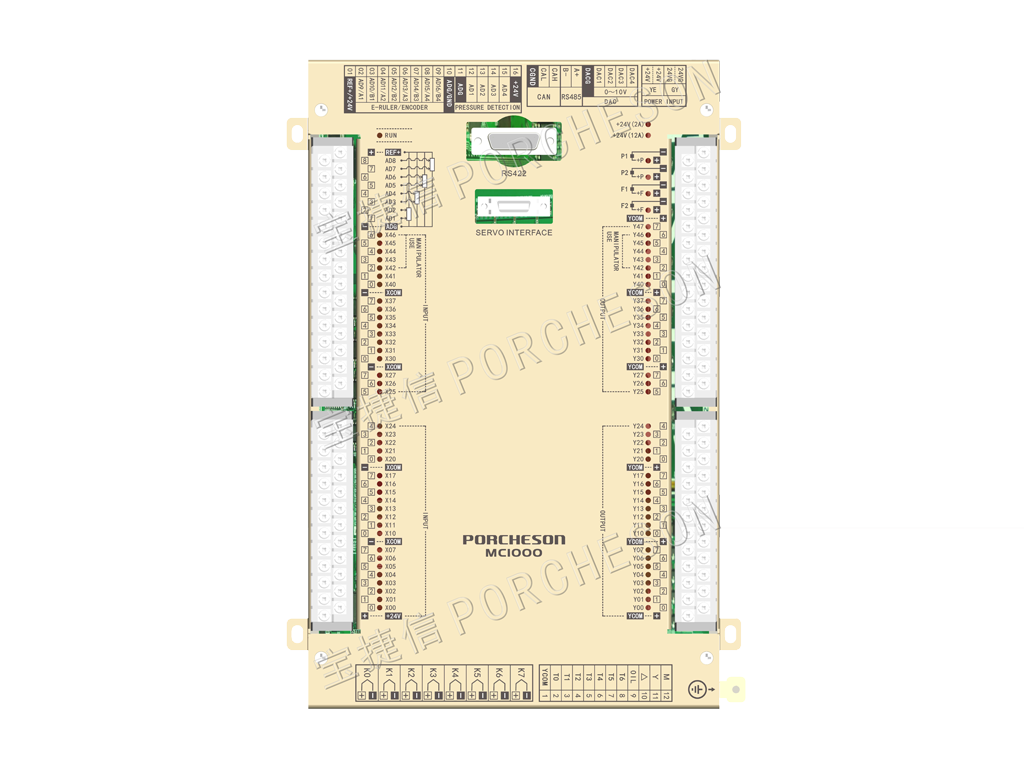

MC1000
|
|
Programming software
|
PsMagic V3.28 (support user’s secondary development, language: ladder diagram +C language)
|
|
Performance
|
CPU: A8 800M; FPGA: 132M; program scanning cycle: less than 100us
|
|
Analog input
|
Position transducer: 0～4.1V, 8 channels single transducer/8 channels dual transducer, precision: 16bit, Sampling period: 250KSPS
|
|
Pressure detection: 0～10V, 4 channels, precision: 16bit，Sampling period: 350KSPS
|
|
Magnetic suspension transducer
|
4 channels, precision: 0.02mm, Sampling period: about 1-10KSPS
|
|
Temperature control
|
8 segments, self-learning PID control, display precision: 0.1℃, sensor type: K (default),J.
|
|
Voltage output
|
4 channels 16bit 0→10v with the fastest rising speed being 300ms
|
|
Current output
|
4 channels closed loop（0-1A），2 channels PWM（0-1A）,Short circuit protection function
|
|
Input I
|
32 channels wet contact (NPN)，5 channels differential scrambler（3channels standard: A\B，2 channels 500K differential scrambler）,Short circuit protection function
|
|
Output O
|
40 channela high power transistor with direct fuel valve, drive capability 4.5A (full load test), 2 channels 500K high-speed pulse output
|
|
11channels other 24V low power output：motor, lubrication, etc.
|
|
Communication interface
|
RS422、RS485、CAN
|
|
Working voltage
|
Service voltage: DC24V
|
|
Environment
|
Working temperature: -10℃～50℃; storage temperature: -25℃～55℃; relative humidity: 15%～85%
|
|
Recommended type
|
All Series
|
|
note
|
Parameters of the product may be changed due to technical update or improvement without prior notice. All ordered products and parameters are subject to the physical product.
|
