product description

PSVisionBulider is a universal standard vision software tool platform independently developed by Baojiexin. It has a simple and clear UI man-machine interface, covering positioning, presence or absence detection, defect detection, measurement, counting, geometry, recognition and other image algorithms packaged This kind of tool module makes it highly versatile and easy to operate.

Software features

• Simple graphical UI interface, support Chinese/English language switching, users can complete the software operation without professional image knowledge and computer knowledge after simple training;

• Hundreds of packaged image algorithm tool modules, users do not need to program, drag-and-drop operation can complete the construction of inspection tasks;

• Abundant algorithm tools, multiple data communication interfaces, realize a set of software universal and multiple vision application scenarios for customers, and are suitable for all walks of life;

• Compatible with a variety of domestic and foreign brands of Gigabit LAN and USB3.0 interface camera hot-swappable access, compatible with support for Win7/Win10 operating system, users can easily choose related hardware to build a vision system;

• Supports simultaneous access of 8 cameras, supports 256 program creation/saving, meeting various complex multi-station detection and fast switching;

Software framework

Positioning module

• The system has an embedded intelligent shape recognition engine that can recognize common basic geometric figures.

• For complex shapes, the system can perform template learning and training to realize the recognition of complex shapes.

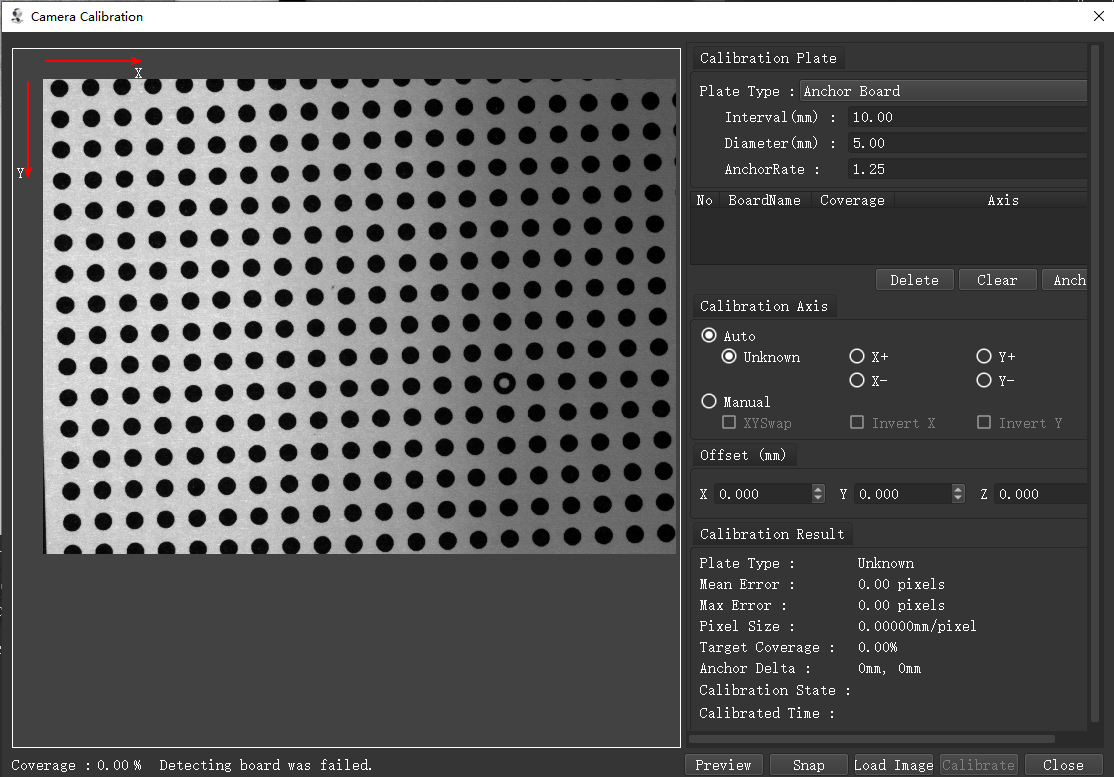

• Multi-point mapping calibration and calibration board calibration can convert image pixels into world coordinates.

• Standard protocol RS232/485 communication and network communication (server) make communication easier.

Measurement module

• PSVisionBulider machine vision measurement software is suitable for online and offline size measurement of products in various industries, with sub-pixel measurement accuracy.

• Dozens of geometric algorithm operations and more than ten measurement tools make measurement simple and powerful.

• Drag-and-drop between the various tools can achieve quick values, results and image links.

• Round, square, checkerboard and other calibration boards, scale calibration.

Check module

• Detection of organizational errors, surface defects, product damage, missing, etc.

• Roundness detection, trajectory detection, straight edge burr detection, etc.

Recognition module

• Text reading, reading and verification of letters, numbers, characters, etc. on products or components.

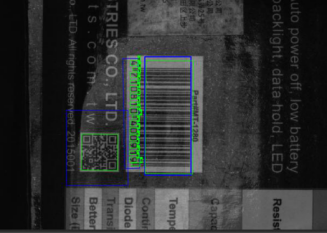

• Read one-dimensional bar codes, two-dimensional codes, and postal codes.

• Read data communication output, RS232/RS485, TCP/IP, I/O output.

Professional tool module

Support multiple camera needs

PSVisionBulider machine vision software can collect images based on hundreds of camera platforms. It currently supports MindVision GIGE/USB series cameras, Basler GIGE/USB series cameras, AVT GIGE/USB series cameras, and Baogi Credit GIGE/USB series cameras.

Advantages

• Intelligent engineering management-can detect different models of products on the same production line at the same time.

• High degree of freedom of communication-choose one of the communication according to customer needs.

• Compatibility at the SDK level-The system directly carries the manufacturer's original driver package.

• Intelligent remote monitoring-all inspection product lines can be monitored in the local area network.

• Data translation module-can "translate" the input and output signals, support user-defined rules.

• Local and FTP data storage-testing data can be stored locally or transferred to other servers via FTP.

• Other auxiliary functions-including intelligent parameter determination, logic detection, system operation log, historical record.

Selected cases
