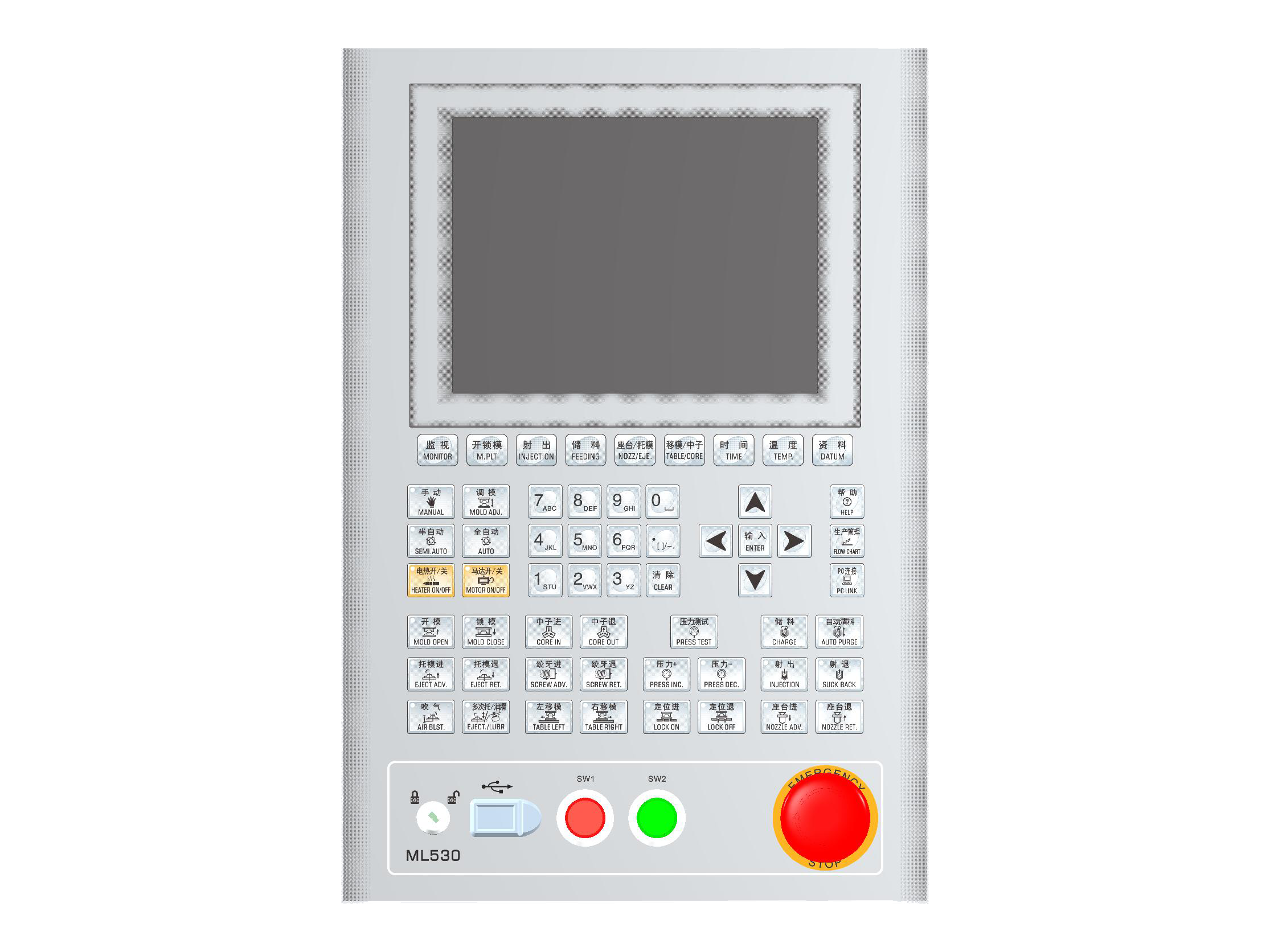

ML530
  • Product Features:
    Function integration, simple operation
    Graphical production process, PC visualization of production data
    Can be combined with a variety of hosts
    10 language options
    Standard USB interface, easy to upload and download data programs
    Password management, multi-user and multiple management modes
    Ethernet interface meets networking needs
    Customizable screen style design
    Support the secondary development of customers

  • project Specification
    brand PORCHESON
    Panel model ML530
    programming software OPWIN V6.29 configuration software (support user secondary development)
    system Processor: A8/300; Memory: 1G
    operation display Display: 8-inch TFT industrial screen, LED backlight; resolution 800x600;
    Button: touch the button lightly, with a lifespan of 200,000 times
    Communication Interface Communication: RS422, Ethernet (100M)
    storage interface USB
    other Data lock, emergency stop button
    Operating Voltage Power supply voltage: DC24V
    environment Working temperature: -10℃～50℃; storage temperature: -25℃～55℃; relative humidity: 15%～85%
    Recommended model Medium and Large Vertical Injection Molding Machine
    • NameVersionFormatSizeDateDownload
      • Product manual
      No data
      Drive
      No data
      Application software
      No data
      Product certificate
      No data
      3D drawings
      No data
Return to product list
