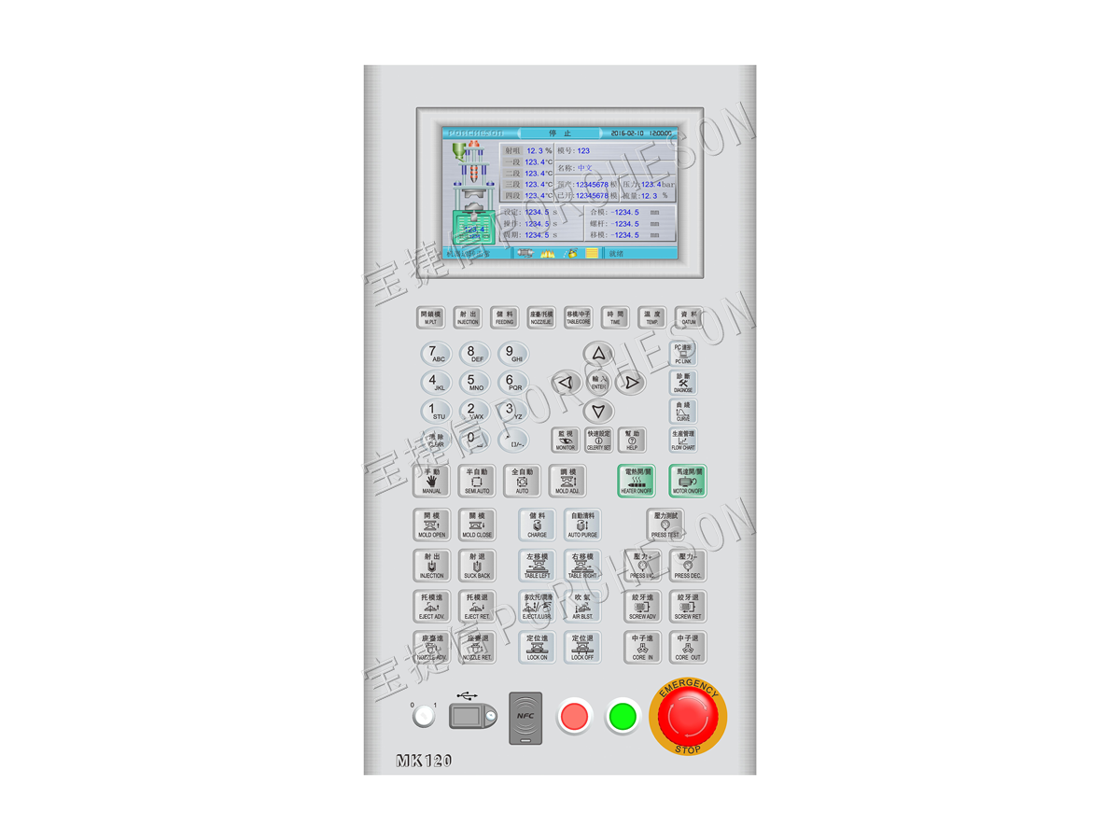

MK120
  • Features:

    ·Functional integration,Easy operation

    ·Graphical production process, visualized production data on PC

    ·It can be combined with many hosts

    ·Ten optional languages

    ·Standard USB connector, convenient to upload and download data and programs

    ·1 password multi-user, multiple management models

    ·Ethernet connector for necworking requirements

    ·Customized style design

    ·User software redevelopment supported to protect clients' core technology


  • Project Specifications
    Brand Porcheson
    Panel model MK120
    Programming software

    OPWIN V6.16 configuration software support user's secondary

    development

    System CPU:  A8  Memory: 1G

    Operating

    display

    Display screen:7 inch  800x480 industrial screen, LED backlight;

    button: touch button, with a service life of 200 thousand times

    Interface

    Communication: RS232, Ethernet(100M);

    storage:USB V2.0 、micro SD card

    Other Data lock, emergency button, NFC function, voice alarm

    Working

    voltage

    Service voltage: DC 24V
    Environment

    Working temperature: -10℃~50℃;

    storage temperature: -25℃~55℃;

    rela  tive  humidity: 15%~85%

    Recommended type Middle and small vertical injection molding machines
    Remarks

    Parameters of the product may be changed due to technical

    update    orimprovement without prior notice. All ordered products

    and parameters are subject to the physical product.

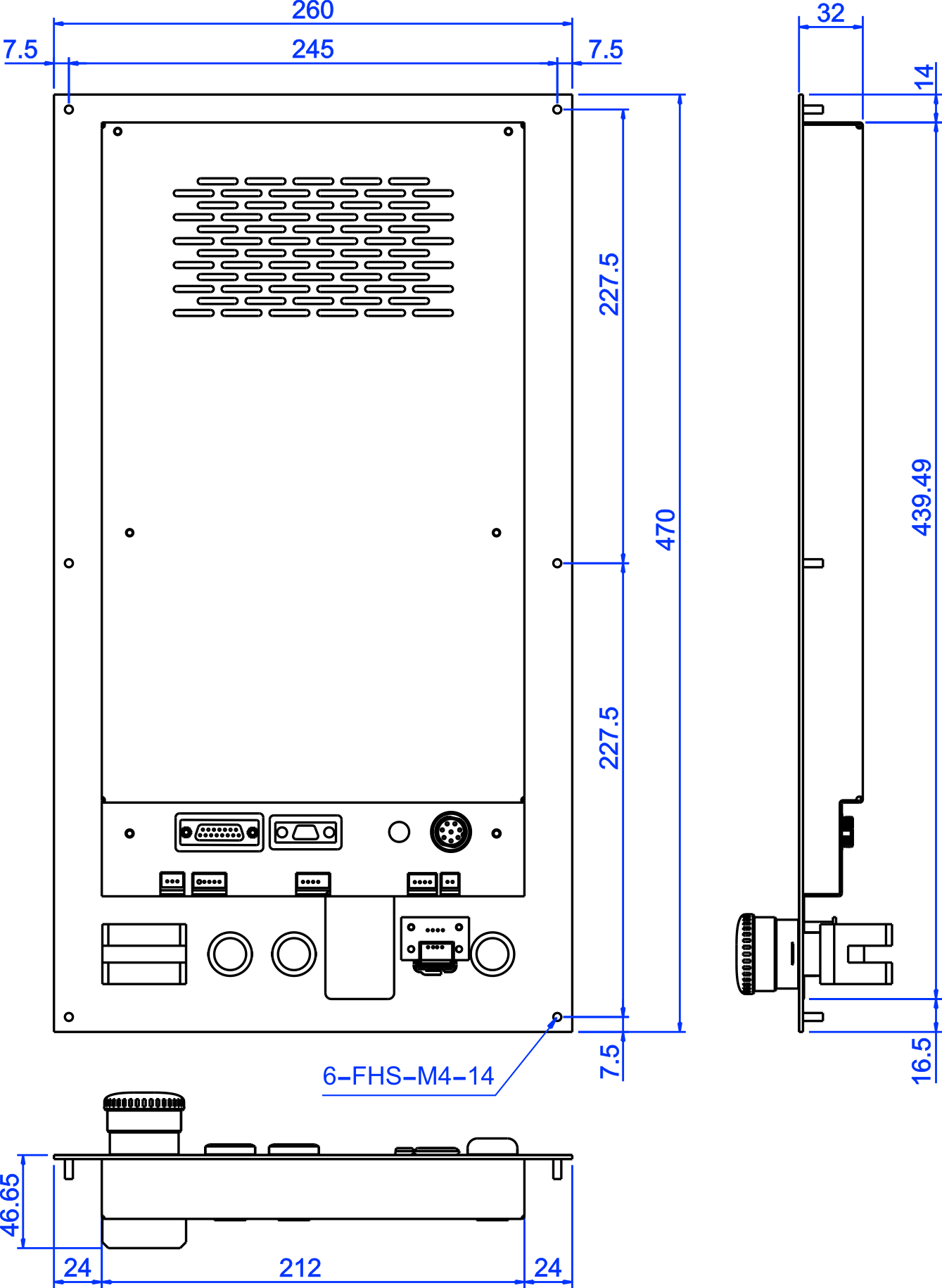

  • 1594281835307854.png
