Project
|
Specifications
|
|
Brand
|
Porcheson
|
|
Host model
|

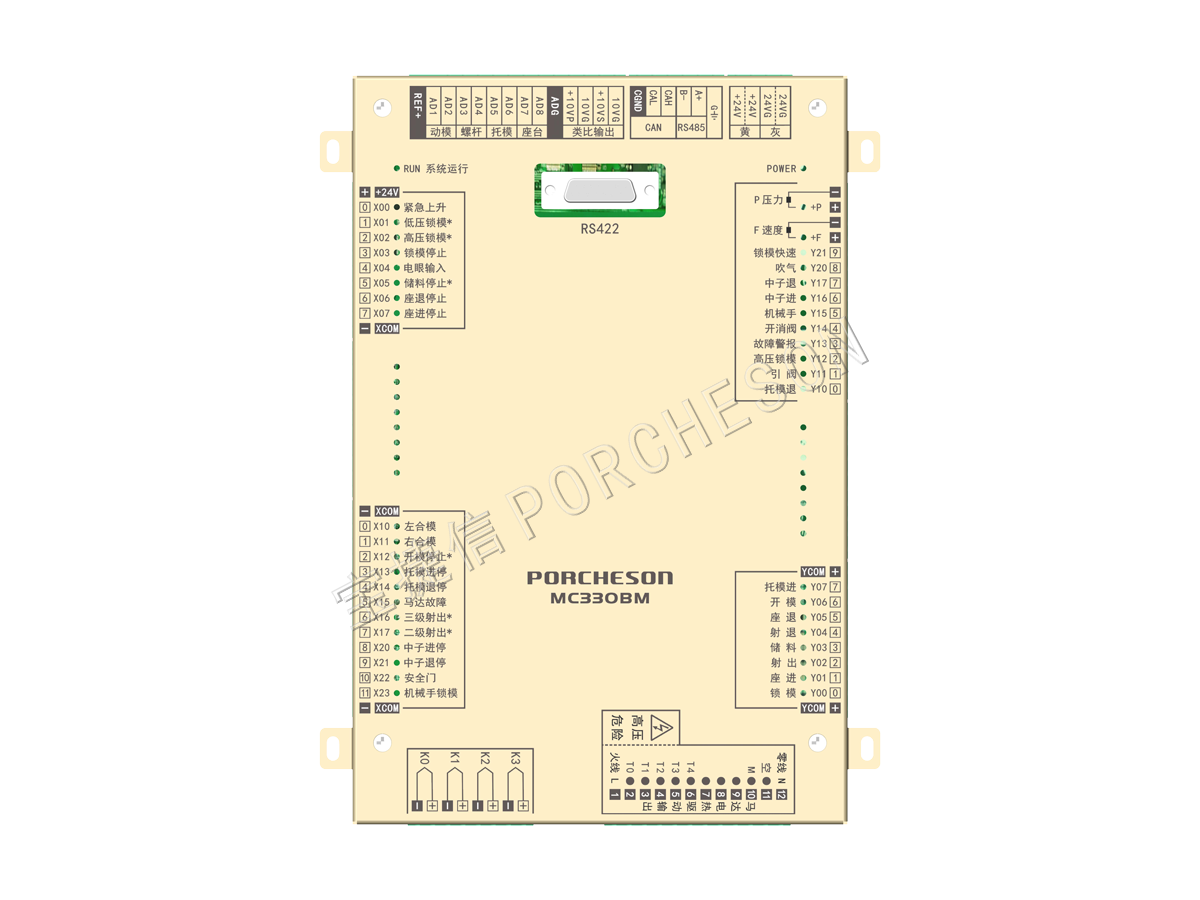

MC330BM
|
|
Programming software
|
PsMagic V3.28 (support user’s secondary development, language:
ladder diagram +C language)
|
|
Performance
|
CPU: ARM; 32-bit CPU; program scanning cycle: 1.2ms
|
|
Analog input
|
Position transducer: 0～2.5V, 6 channels single transducer/3 channels
dual transducer, precision: 12bit, Sampling period: 100KSPS
|
|
Pressure detection: 0～10V
|
|
Temperature control
|
4segments, self-learning PID control, display precision: 0.1℃,
sensor type: K (default),J.
|
|
Voltage output
|
2 channels 16bit 0→10v with the fastest rising speed being 300ms
|
|
Current input
|
2 channels closed loop（0-1A），2 channels PWM（0-1A）
|
|
Input I
|
20 channels wet contact (NPN)，2 channels differential
scrambler（2channels standard: A\B）,Short circuit protection
|
|
Output O
|
17 channela high power transistor with direct fuel valve,
drive capability 4.5A (full load test)
|
|
9channels Wet Contact (relay) output：motor, lubrication, etc.
|
|
Communication interface
|
RS232、RS485、CAN
|
|
Working voltage
|
Service voltage: DC 24V
|
|
Environment
|
Working temperature: -10℃～50℃; storage temperature: -25℃～55℃;
relative humidity: 15%～85%
|
|
Recommended type
|
small vertical injection molding machines
|
|
Remarks
|
Parameters of the product may be changed due to technical update or
improvement without prior notice. All ordered products and parameters
are subject to the physical product.
|
