Specification
|
|
brand
|

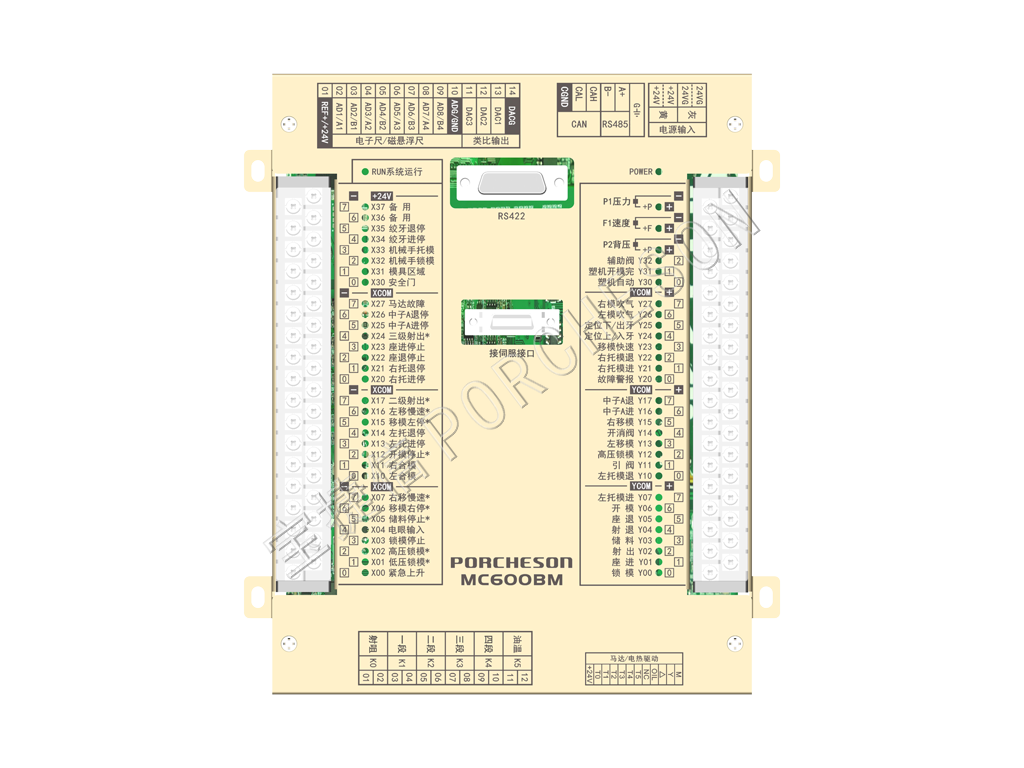

PORCHESON
|
|
host model
|
ML600
|
|
programming software
|
PsMagic V7.42 (support user secondary development, language: ladder + C language)
|
|
performance
|
Processor: ARM 32-bit CPU
|
|
Program scan cycle: 1.0 milliseconds
|
|
analog input
|
Electronic ruler: 0~2.5V, 6 channels single ruler, precision 12bit, sampling period 100KSPS
|
|
Pressure detection: 2 channels: 0-10V standard 0-20MA optional
|
|
temperature control
|
6 segments, self-learning PID control, display accuracy 0.1°C, K and J thermocouples can be selected
|
|
voltage output
|
2-way 16bit 0→10v rising speed is 300 milliseconds,
|
|
current output
|
3-way closed loop (0-1A)
|
|
input I
|
32-way NPN type, short circuit protection function, X0+X4 control Y0 output
|
|
Output O
|
27-way high-power transistor directly with oil valve, driving capacity 4.5A (full load test)
|
|
10 other 24V small power outputs: motor, lubrication, etc.
|
|
1 high-speed pulse output
|
|
Communication Interface
|
RS422, RS485, CAN
|
|
Operating Voltage
|
Power supply voltage: DC 24V
|
|
environment
|
Working temperature: -10°C~50°C; storage temperature: -25°C~55°C; relative humidity: 15%~85%;
|
|
Recommended model
|
Large Injection Vertical Molding Machine, Zipper Machine
|
